Sand searches  -  Port developments Pipe routes
Alluvial mining  -  Dredging

Aquares 4D ground modelling

In many industrial applications involving alluvial mining, dredging and marine construction the application of this high quality survey method has opened new frontiers in the way these projects are being designed and prepared based on the capability of the Aquares resistivity method to generate high quality geophysical data presented in a georeferenced 4D model. This 3D model contains the base information of an integrated digital ground model which is the foundation on which projects are being designed, tendered and executed. Several examples are shown below with a wide variety of applications including sand searches, port developments, pipe routes, alluvial mining and dredging projects. A general map showing the locations of a larger number of projects is shown here.

Sand searches

Papua New Guinea

Two multinational contruction companies interested in building an aluminium plant and a hydroelectric power station in a mangrove swamp on an island near Papua New Guinea decided to carry out an extensive classical soil investigation around the island to find suitable sand for reclamation purposes. Various geophysical and geotechnical surveys were realized involving seismics, sidescan sonar, multibeam bathymetry, 77 vibocores and 116 boreholes. As the geophysical results were of poor quality the vibrocores and boreholes were randomly placed.

After 2 years of investigations worth 12 million dollar, the final report concluded that no significant volumes of sand were available. The consultants then decided to carry out an Aquares resistivity survey hoping to get a better geological understanding of the site using an integrated 3D ground model. After 10 days of survey work the resistivity results showed the location of more than 200 million m3 of sand deposits. Moreover, the resistivity results also showed the projected navigation channel leading to the island to be cutting a number of rocky areas (see figure). By changing the design of this channel shifting it about 300 m to the east very expensive dredging costs were avoided. Cost savings based on resistivity results have been estimated at more than 1000 times the survey costs.

Port developments

Limbe port development

In Limbe, Cameroon the decision was taken to build a port for the maintenance of offshore oil drilling platforms. In a first instance the port was designed and tendered without any detailed previous knowledge of the geological characteristics of the construction site. A marine construction company bidding for this project and understanding the importance of the lack of geological information with regards to their cost estimates, decided to work out an integrated 4D groundmodel based on Aquares resistivity measurements.
A complete 4D model of the construction site was generated based on the resistivity results completed with boreholes. The picture shows a number of horizontal resistivity sections at -10, -12 and -16 m relative to chart datum as well as a vertical section showing the thicknesses of some of the geological structures. The construction site consists of solid basalt overlain by weathered basalt and fine to coarse sediments as confirmed by a limited number of boreholes.

Based on the original design it appeared that dredging operations and construction of the quaywall would be extremely expensive due to the presence of very hard solid basalt. After some calculations and various communications with the client's consultants, it then was decided to modify the design to take advantage of the location of the solid basalt for the foundation of the quaywalls and softer rock and sediments for the turning basin and rehandling pit.
By adjusting port design to the geological conditions as defined in the integrated digital 4D ground model it was estimated that more than 50% of the construction costs were saved.

Buenaventura port development

A company specialised in port operations and logistics planned to build a new port in a mangrove swamp in Buenaventura, Colombia. In order to be able to correctly and economically design quaywalls, turning basins and other infrastructure they decided a detailed integrated 4D ground model was required based on Aquares resistivity information.

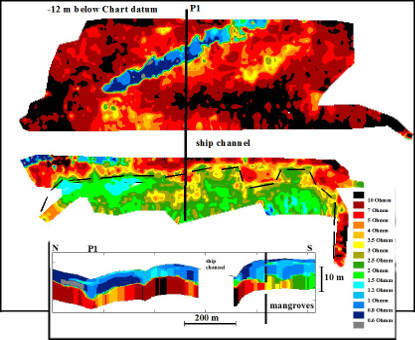

The picture shows a horizontal and a vertical resistivity section of the construction site. The high resistivity values (green-red) correlate with siltstone rock while the low resistivity values (blue) correlate with muddy sediments as confirmed by boreholes. Based on this type of sections dredge volumes of sediment and rock can be calculated for the turning basin north of the existing ship channel and quaywalls can be designed south of the ship channel based on accurately known rock head levels.
Interestingly, the horizontal as well as the vertical section both show different resistivity values for the rock heads underlying the mangroves (green-yellow: 1.5-3.5 Ohmm) as compared to rock head resistivity values (red: >5 Ohmm) underlying open water north of the ship channel. This phenomenon is most likely associated with low pH values in mangrove areas caused by sulphate concentrations generated by the decomposition of biologic tissue of marine animal life living in the mangrove swamp. If no appropriate precautions are taken during dredging operations, this potential acid sulphate hazard may become an accute menace to the existence of marine life in the surrounding area.
It is obvious that without the application of high quality geophysics presented in a 4D ground model these potential environmental hazards most likely would have been detected only during execution of the project when actually unleashed by the dredging operations.

Eden port development

The Eden Port Development project was a $25 million port construction project managed by NSW Trade and Investments (Crown Lands) in New South Wales, Australia, involving the extension of an existing breakwater, quaywalls and mooring dolphins, associated dredging operations and a fixed or floating wave attenuator. Originally the port design was based on a detailed site investigation including a classical seismic reflection survey, a side scan sonar survey, magnetometer survey, 21 boreholes and 15 vibrocores. Crown Lands then decided to carry out an additional site investigation integrating all existing information into a 4D ground model based on Aquares resistivity results to help mitigate latent geological risks specific to the project.

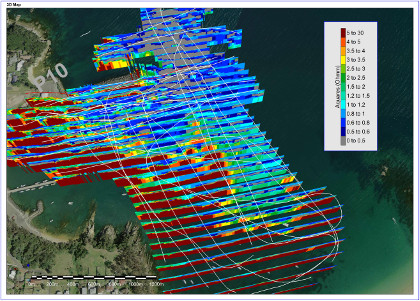

The picture shows some of the results presented using the Encom PA software package. They clearly show the extent and thickness of high resistivity rock heads and gravels. Significant differences were noted between the seismic results and the high quality resistivity (Aquares) results. The use of an Aquares based integrated 4D ground model on this specific project has led to an estimated 20% savings in dredging and piling costs.

Pipe routes

A construction company contracted to build a power plant along the coast in Ghana was required to include an intake and outfall for cooling water  of the power plant. The intake and outfall tunnels were to be drilled horizontally at about 10 m depth starting from the beach. As drilling tunnels should be done in solid rock while the retrieval of the drilling equipment  can more easily be done in softer sediments where a simple hopper suction dredge would be capable to uncover the drilling equipment, the construction needed good geological information to optimize the tunnel routes. As the classical seismic and borehole information provided by the client where largely insufficient for the purpose they ordered an Aquares resistivity survey to generate a georeferenced 4D integrated ground model of the construction site subsurface.
The vertical resistivity sections generated across the 4D model clearly shows sold rock heads (high resistivity values) covered by weathered rock (intermediate resistivity values) and soft sediments (low resistivity values). The horizontal resistivity section at 2 m below seabed level shows the position and extent of a palaeoriver system filled with low resistivity soft sediments meandering in between solid and weathered rock heads.
Based on high quality resistivity information combined with borehole and other geotechnical information into a georeferenced integrated 4D ground model, the tunnel routes could be optimized saving  millions of dollars in drilling and dredging costs.

Alluvial mining

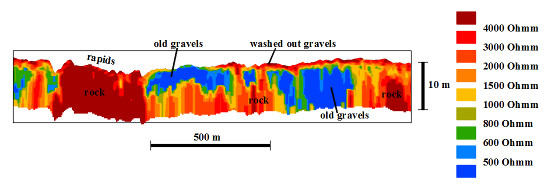

After several months of poor productivity on the Tshikapa river in the West-Kasai, DRC Congo, a diamond mining company decided they needed an Aquares resistivity survey to map the diamondiferous gravels in their concession. A complete 4D model of the river was realized in a 5x5 m2 grid. Low resistivity structures on the vertical resistivity section correspond with high grade old diamondiferous gravels resting on high resistivity bedrock and overlain by high resistivity washed out young (mobile) river gravels on the river bed.
By focussing the dredging operations on the more promising geological structures as mapped in the 4D resistivity model, the productivity of the mining operations were significantly increased.


After a detailed site investigation involving a number of classical geophysical surveys and a borehole campaign, ACP (Autoridad del Canal de Panama) tendered a dredging project in the access channel leading to the Miraflores locks. A group of dredging companies interested in the project realised an additional investigation including an Aquares based  integrated 4D ground model.
Some of the results are shown in the horizontal and vertical resistivity section of the picture shown. The vertical section shows the location and extent of hard basalt rock, softer mudstones and soft mud. The horizontal section shows the lateral extent of the geological formation at dredge level. It clearly shows a natural palaechannel cut into basalt rock by the Rio Chagres in his course from Lake Gatun to the Pacific Ocean in geological times when Pacific sealevels were far lower than they are now.
This type of high quality geophysical information complemented with a limited number of well targeted boreholes allowed the dredging contractor to accurately calculate the geological risks. As a consequence, this dredging project was awarded at only 30% of the original budget estimate suggested by ACP in the tender documents based on their own site investigation excluding advanced geophysics (Aquares) based integrated 4D ground modelling.


Aquares is an extremely powerful and versatile geophysical exploration method. It is very effective in reducing geological risks. For most geological site investigations an Aquares resistivity survey tends to be the best value-for-money solution generating high quality and very clear results where other geophysical methods often tend to fail.

Client testimonials:

"We are finally done with the guesswork!"
(Quote from USACE after a successful Aquares resistivity survey following previous inconclusive survey campaigns)

"Boskalis uses for different projects geo-electric surveys to quantify and qualify rock outcrops. For the geological setting near the coast of Luderitz (Namibia) geo-electric survey is preferred above conventional reflection seismic since gravels above the rock outcrop might diffuse the signals. Also it is believed that reflection seismic will not give information about the rock strength characteristics, while geo-electric survey data can."
(Advise from Boskalis BV to Namport with regards to the geophysical methods to be used in the port of Luderitz)

"We herewith confirm that Demco NV has carried out a resistivity survey for us in the acces channel of the Port of Buenaventura, Colombia in view of a dredging project. The results clearly showed the locations of rock and sediments as well as different qualities of rock."
(Declaration from Jandenul NV after a successful Aquares survey in the port of Buenaventura)

"We herewith confirm that Demco NV has carried out a resistivity survey for us in the Pacific access channel in Panama. Using the resistivity results the different sedimentary and rock structures could be distinguished. The resulting 3D model of the subsurface proved useful in determining volumes for each of the structures."
(Declaration from DEME NV after a successful Aquares survey in the Panama Canal)

"We herewith confirm that Demco NV has carried out a resistivity survey for us in the port of Limbe, Cameroon. The resistivity results were considered very useful in defining the nature of the subsurface as a foundation for the quaywalls to be constructed."
(Declaration from Interbeton BV with regards to the construction of the port of Limbe the design of which being based on a 3D integrated ground model provided by Aquares resistivity information.)

"This is to acknowledge that OEMG mapped significant parts of the Botany Port seabed, operating around working vessels in a few days utilising the Aquares system. Works were completed on time and within budget and our objectives were met: OEMG's mapping allowed assessment of the condition of the subsoil directly adjacent to the wharf structures allowing us to verify the stability of the structures for current and future use."
(Declaration from NSW Ports after an Aquares resistivity survey in Botany Port, Sydney.)
